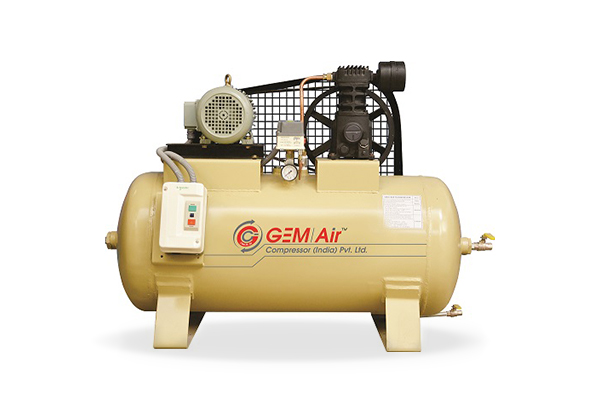

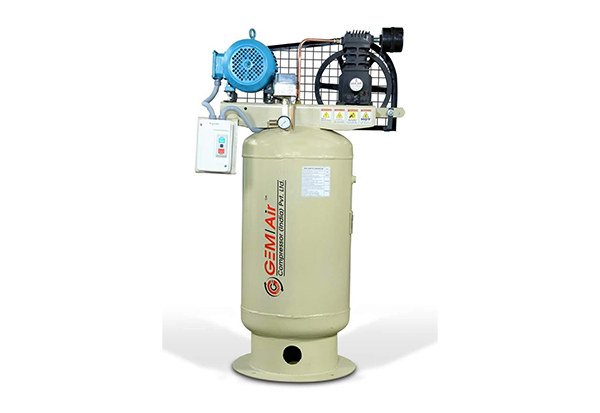

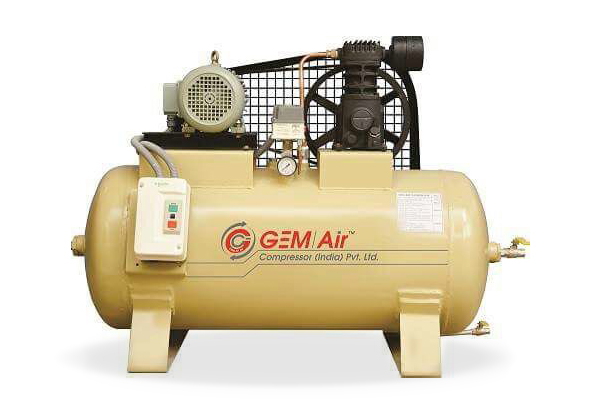

The reciprocating air compressor is single acting when the compressing is accomplished using only one side of the piston. In Single stage compressor, the air used to compress with single piston which having smaller size and generate compress with only one cylinder.
This types of Air Compressor mainly used in Vehicle garage and service centers, tanneries and some level to powder coating. Maximum pressure can be generate in single stage compressor is 125 PSIG (8.75 KG/CM2).
We have different types of models from 1HP to 20HP as per requirement of application.
| MODEL No. | CYLINDER | MOTOR HP | RPH | PD CFM | FAD CFM | MAX. PRESSURE | Air Receiver (Ltrs) | |
|---|---|---|---|---|---|---|---|---|
| Psig | kg/Cm2g | |||||||
| 1SS | 2.75" X | 1 | 750 | 5.15 | 3.76 | 125 | 8.75 | 60/100 |
| 1SS | 2.75" X | 1.5 | 900 | 6.20 | 4.70 | 125 | 8.75 | 60/100 |
| 2SS | 2.75" & 2.75" X | 2 | 750 | 10.31 | 7.52 | 125 | 8.75 | 100/150 |
| 2SS | 2.75" & 2.75" X | 3 | 900 | 12.36 | 9.06 | 125 | 8.75 | 100/150 |
| 3SS | 3" & 3" X 2.75" | 3 | 660 | 14.85 | 10.70 | 80 | 5.5 | 100/150 |
| 5SS | 4" & 4" X 2.75" | 5 | 866 | 34.60 | 22.20 | 80 | 5.5 | 200/250/300 |
| 7SS | 5" & 5" X 3.5" | 10 | 866 | 52.80 | 39.10 | 80 | 5.5 | 250/300/500 |
| 13SS | 5.5" X 5.5" X 4" | 12.5 | 800 | 88.00 | 66.00 | 40 | 2.25 | 300/500 |
| 15SS | 5.5" X 5.5" X 5.5" X 4" | 20 | 900 | 148.50 | 111.10 | 40 | 2.25 | 500 |
